Day 10 The electrical is 99.99% done, all I got left is a coax run to the AV closet I forgot about...
On to the progress: cans!
Electrical box, labeled.
Have you ever seen so much wiring in a ceiling?!
Projector HDMI and electrical boxes. The electrical actually leads back to a standard male outlet plug so that it can be on a UPS.
New RCA run for the subwoofer, got a Leviton single snap in quick port to match

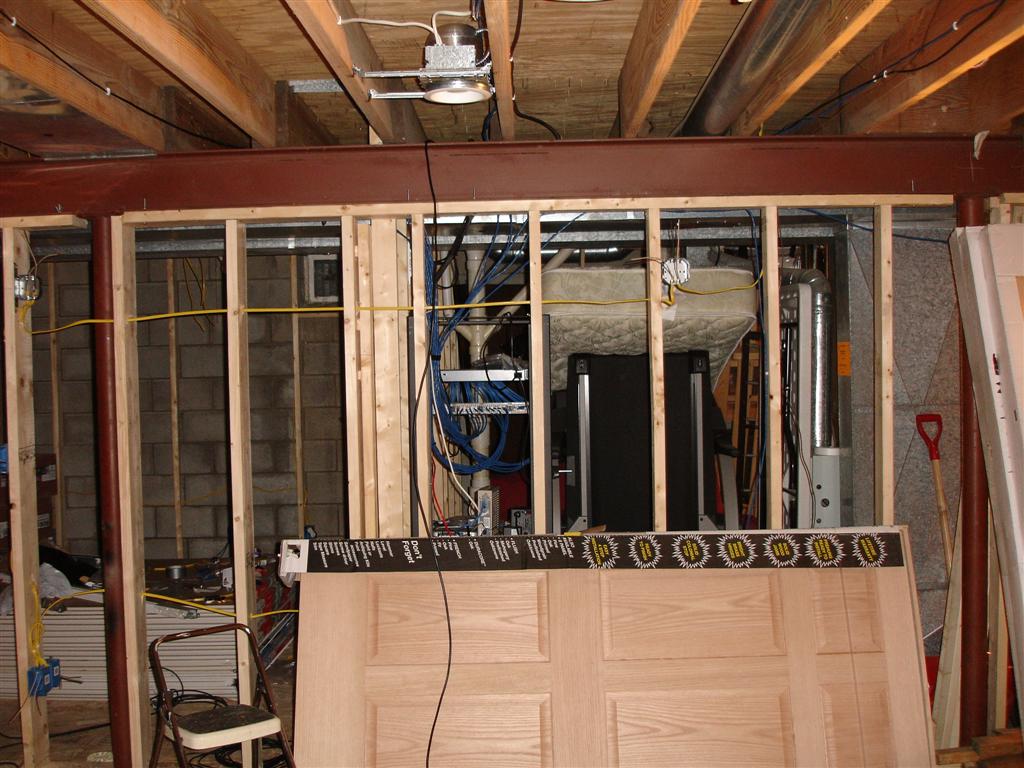

The completed network rack with coax juntion panel
Coax splitter panel:
Leviton touch dimmer, these things kick ass! With one touch they turn on/off remembering previous brightness levels and when you press and hold they slide the lights up and down the brightness scale.
Sconce wiring boxes.
Backside of the Rack.
Un-loaded sub panel.
Breakers and grounding wire.
